Most sizing mistakes on an amenity tray hotel buyers specify start on paper, not on the casting floor. Someone picks a proportion that looks balanced in a rendering. We cut the mold. The first sample looks correct, right up until a real kettle sits on it, the handle overhangs the wall, and the second cup has nowhere to go. Then the drawing gets redone and the tool gets recut.
We cast polyresin in Huizhou and finish every piece by hand, so the same three or four fit problems reach us year after year. Almost all of them trace back to a tray drawn as a shape first and a container second.
Design around the payload, not the proportion
A tray has one job. Hold specific objects, stop them sliding, and let one person lift the lot at once. Start from the objects and the size resolves itself. Start from a pleasing rectangle and you spend two rounds of samples discovering what does not fit.
So why do tray drawings still begin with a proportion so often? Because the drawing comes from a stylist matching the tray to a mood board, not from the person who will load it. The fix is cheap. Put the real items on a desk, measure them, let those numbers set the outside dimensions.
Measure the actual pieces. Not the catalogue photo.
Welcome trays: a kettle, two cups, and the gaps between them
The in-room welcome tray carries a kettle plus two cups, sometimes on saucers, often a sugar caddy too. Three numbers decide the size. Kettle base footprint, cup diameter at the widest point, and the clearance a housekeeper needs to lift one cup out without knocking the kettle over.
A 0.8 to 1.2 litre hotel kettle usually stands on a round base somewhere around 140 to 170 mm across. Cups run roughly 75 to 95 mm at the rim. Add 15 to 20 mm of breathing room between neighbours, then the wall thickness on each side, and the clear internal opening lands much wider than the first draft allowed. A tray that looked elegant at 300 mm long has to grow past 380 mm before it works.
Here is a detail from our side. Cast resin shrinks slightly as it cures, so a drawing dimension is never the finished dimension. Specify an internal opening matching the kettle base exactly and the tray comes out tight, or refuses the item. We build that clearance into the mold rather than trusting the drawing. A tray that misses by two millimetres has failed completely.
Vanity trays live inside a depth nobody controls
A bathroom tray sits on a counter that already exists. Usable depth in front of the basin is whatever the tap, the basin rim and the backsplash leave behind, far less than the stated depth of the counter. A tray 200 mm deep will overhang the front edge or crowd the tap.
So vanity trays want to be wide and shallow. Modest front to back, generous left to right. Guests catch a projecting tray with a hip or an elbow, and stone-filled resin landing on tile chips at the corner. That constraint drives the pieces sharing the counter too, which is why coordinated resin bathroom sets for hotel vanities get sized as a family, not one piece at a time.
Flatness is the other counter problem. A large flat cast base does not cure perfectly flat, it cups a fraction. Past a certain span we recess the underside or set pads at four points, so it rests where we chose, not wherever the casting happens to touch. Skip that and the tray rocks on a granite top.
Slipper trays and the long-thin problem
A pair of adult slippers side by side runs roughly 280 to 300 mm long and 200 to 220 mm across, so the tray settles near a 3:2 rectangle. Simple enough on paper. The manufacturing consequence is not.
Stone-filled polyresin is stiff but not tough. The more mineral filler goes in to get a convincing marble, travertine or terrazzo face, the more brittle the casting becomes. On a long tray with a thin base, lifting one-handed from the middle loads the material in bending exactly where it is weakest, and it snaps clean across. Wall thickness has to climb with the long dimension. It’s a material decision, not a styling one.
Buyers sometimes ask us to thin the long formats down to save shipping weight. We push back on that. Broken trays cost more than freight.

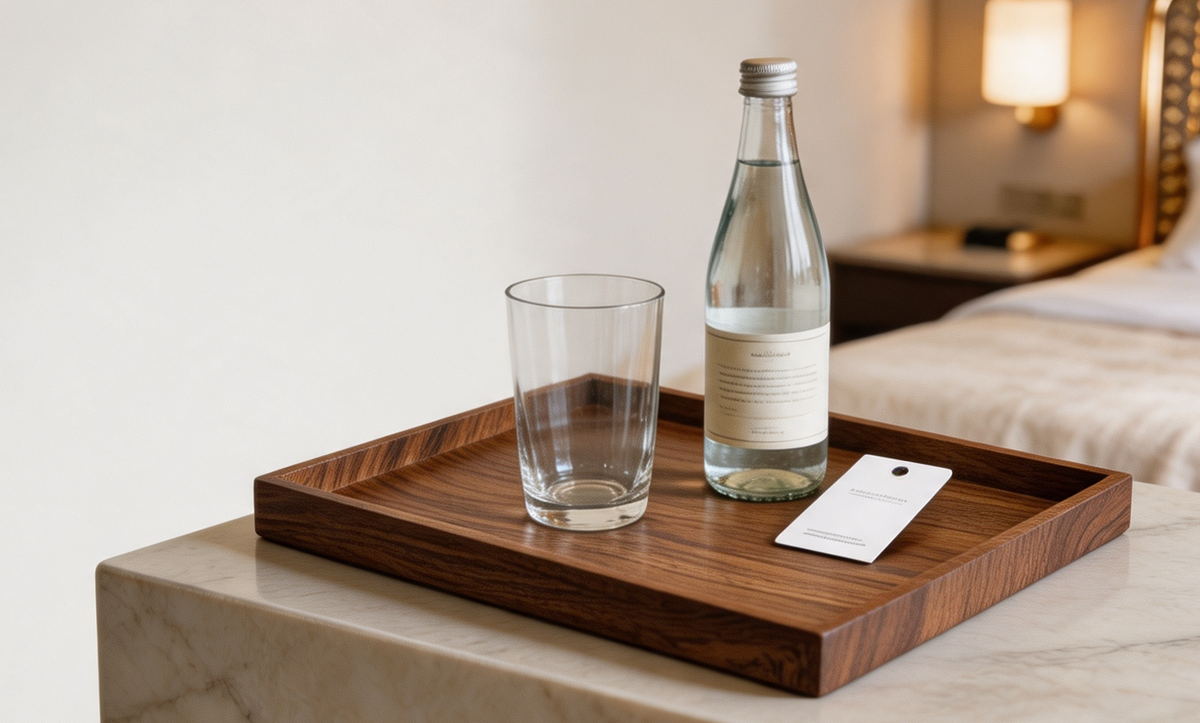

Handles change how a tray is used and how it is made
Two ways to give a tray a grip. Cut slots through the rim, or raise the wall and let the rim itself become the handhold. The first is easier to carry under a full load. The second is stronger and cheaper.
A cutout in the rim is a stress concentrator. Keeping it from cracking means thickening material around the opening, which changes the tool, and every cutout edge gets sanded by hand because the parting line runs through it. That is per-piece labour on every unit, and it lands in the price in a way no drawing predicts.
There is a housekeeping consequence too. A tray with handles gets carried on a corridor round with both hands full. A handleless one gets slid onto a table and lifted with fingers under the base. Teams clearing rooms at speed want handles on the large formats and resent them on small ones, where the cutout collects dust. Our cast polyresin service trays and the softer leather-grain service trays split roughly along that line.
Lip height decides how the tray cleans
The lip, meaning the wall standing around the tray, does two jobs. It stops items sliding off when the tray tilts, and it holds liquid in if a cup goes over. A very low lip looks modern and doesn’t really do either.
The real trade-off is cleaning. A tall lip with a tight internal corner traps grime precisely where a cloth cannot reach, so we keep the internal fillet, the radius where wall meets base, deliberately generous. Housekeeping cleans with a folded cloth over one finger. If the finger cannot get into that corner, the corner never gets cleaned, and months later the tray reads as dirty.
Vertical walls create a second issue. A tray with no outward taper stacks and jams. The top one lifts, takes the next with it, then drops it. A small draft angle lets them nest and separate, and the shorter stack cuts the shipping cube.
Shape decides how even the finish looks
A wide, flat, glossy tray base is the hardest surface we cast. Every ripple in the mold shows under a downlight, and stone or terrazzo texture hides all of it. Tall walls have the opposite quirk: the inner corner is hard to spray evenly, so colour builds up and reads darker than the open field. Worth checking on the deeper forms in our resin amenity boxes and the leather-grain amenity boxes, where the pebble grain is pressed into the same polyresin rather than wrapped in hide.
Approve the size before the mold gets cut
Send the actual items, or dimensions with tolerances, before tooling starts. Kettle base, cup at its widest, the amenity bottles, the slippers in their bag. We check the internal opening against them, add the shrinkage clearance, then confirm the outside size that results. Sets can be split or recombined at that stage, so a room needing a tray and a cast resin tissue box but no matching resin trash can gets exactly that.
JY Craft cuts and runs its own molds, so a size change is a conversation with the people holding the tool, not a message down a chain of traders. The rest of the polyresin range gets specified the same way, and how we cast and finish each piece covers the production detail. If the items are on your desk and the counter is measured, send us those measurements and we will tell you what will actually hold them.
